Punisher 6 - Mazda 6 - Twin Turbo

[The Great NY]

This is my ride. most know her as Punisher 6. i originally brought her for a DD while i built my other car. but when i totalled that other car (my escort) i started building this. and this is where we are at since i crashed my other car in 2008. i brought the 6 sometime in 2006.

2004 Mazda 6s (was a base model)
3.0L Duratec V6
Had the nasty tan/brown interior when i brought it.


Engine/Drivetrain:

-Custom Twin Turbo Setup
-2 Turbonetics T3 Super 60s A/R .36 Hybrid (ported compressor sides w/ 60-1 Hi-Fi Compressor wheels)
-Custom 3" Turbo Inlets
-Custom mounted Spearco Intercooler
-Raptor BOV - vta
-Custom SS 321 Piping
-Custom 3" Stainless Steel Exhaust
-Injector Dynamic ID1000 Fuel injectors
-Fully Built Engine (Noble Hybrid)
Blueprinted
Stock Forged Crank
Forged Wiesco Pistons (8:5.1 compression) w/ valve reliefs
Forged Scat H-Beam Rods
Clevite 77 Rod and Main Bearings
Machined Oil Squirters
Upgraded Oil Pump
Mild head Port
ST220 Valve Springs
-Aeromotive 340 Stealth Pump
-Megan Racing M-GT Carbon Fiber Turbo Mufflers
-Vibrant Perfomance 3" Metal Cat & 3" Resonator
-NGK Iridium IX (TR6 - colder) gapped @ .30
-AEM Water Meth Injection System
-AEM Methanol Injection Monitoring System
-PowerMod Advanced Engine Management System
-Mustang Cobra 4v Ignition Coils
-TGNY Custom Ignition Coil Leads
-EMI Suppressors added Throughout the electrical system
-Throttle Body Coolant Bypass with T-fitting delete
-Fidanza 9 lbs. Lightweight Aluminum Flywheel
-Competition Clutch Stage 5 (4-puck sprung)
-Twisted Visionz/TGNY TCS Auto Off module
-MFactory Prototype Forged Helical LSD
-ARP Ring Gear to Differential Mounting Hardware
-Modified/Optimized EGR system modification
-AWR Lower Rear Bone Mount
-AWR Upper Transmission Mount
-AWR Passenger Side Head Mount
-N2MB WOT Box with 2-step and No-lift Shift Feature
-TWM Short Throw Shifter
-TWM Solid Shift Plate Bushings
-TWM Shift Cable Bracket
-Optimized 3.7L Throttle Body (75mm) w/ custom TB spacer "first to run the 3.7L TB"
-Lightweight Aluminum Alternator Pulley
-Fluidampr 10% Under-driven Crank Pulley
-Modified Oil Catch Can (VTA, Baffled, Filtering Medium added)
-NRG Engine Grounding Kit
-NRG Chrome Hood Dampers(modified by me)
-Rear hood weather stripping removal(for heat expelling)
-Custom Polished Aluminum Cooling Piping
-180 Degree Stant Premium Thermostat
-Nitrous Express Intercooler Spraybar
-Nitrous Express Proton Nitrous Injection System w/ Fly-By-Wire Controller
-Ported Lower intake Manifold Runners
-Ported Upper Intake Manifold (first to do it)
-O2simulator
-Battery Relocation to Trunk
-ETC Electronic Throttle Controller

Brakes and Suspension:

-BC Racing Coilovers BR Type
-R1 Concepts slotted and drilled rotors (front and rear)
-Axxis High Performance Ceramic Brake Pads
-Racing Beat Front Sway Bar
-Racing Beat Rear Sway Bar
-AWR Adjustable Sway bar Endlinks Front
-AWR Adjustable Sway Bar Endlinks Rear
-GT Spec 6-point Ladder Brace
-Custom Frame Connectors
-GT Spec Rear Trailing Arms
-Autoexe rear trunk brace
-Motul RBF 600 Racing Brake Fluid (Dry Boiling Point 593 degrees F)
-Front Upper Strut Brace
-Candy Blue Powder Coated Strut Bar Mounting Plates
-Techni-Fit Blue Stainless Steel Brake Line Kit
-Techni-Fit Blue Stainless Steel Clutch Line

Exterior:

-Autoexe GG-02 Front Bumper, 2-toned w/ black accenting(not sold in the states)
-Cyber Full Rear Bumper (2-toned w/ black accenting)
-Cyber Side Skirts
-Monster Carbon Fiber Hood (Body Color Matched with CF show-thru custom Accenting)
-Car-LED Black Housing LED conversion tail lights
-The Retrofit Source: Clear Lense Bi-Xenon Projector Upgrade w/ Morimoto Mini H1 5000k bulbs
-Wire Tuck (first V6 tuck)
-Four way Brake-light Mod
-06+ Mazda 6 Black Housing Headlights
-Candy Blue Powder Coated Valve Covers
-Candy Blue Powder Coated Charge Piping
-Black headlight eyelids
-Custom Flying M Emblems
-Debadged
-custom under hood mirror inserts by www.underthehoodinc.com[/URL]
-Door Guard deletion
-Custom Stainless Polished Engine Cover
-Custom Stainless Fuse Box Insert
-Blue LED headlight marker lights
-Chrysler Pacifica Stereo Antenna
-Aftermarket Sunroof w/ wind deflector
-Hyperwhite Headlight turn signals
-Fenders Rolled
-Traklite Angle 18x9 ET40 Custom Powdercoated Wheels
-Nitto NT-05 235 40 18 Tires
-Powdercoated White Lugnuts - Inverted Style

Interior:

-Full Custom Interior Done by Gillin Custom Design - www.gillincustomdesign.com[B[/URL]] (too much to list)[/B]
-Custom Steering Wheel Airbag
-Blue LED dome lights
-Sony CDX-M9900 cd/dvd/mp3 player head unit
-Sony CDX-757mx ten disk cd changer
-Kicker Solobaric L7 Subwoofer in custom ported box
-Kicker KX600.1 mono class D amplifier
-Blue LED door sill lights
-Alfa Otto Racing Reverse Glow White Gauge faces
-Stainless Steel Weighted Shift Knob (2 lbs) (Member Front1ine)
-Lotek Tri-gauge dash pod
-Glowshift Triple Gauge A-Pillar Pod
-AEM Injection Monitoring Gauge
-Prosport Performance Wideband A/F Monitor Setup (Evo Series)
-Prosport Performance Boost/Vac Gauge (Evo Series)
-Prosport Performance Oil Temp Gauge (Evo Series)
-Prosport Performance Oil Press Gauge (Evo Series)
-Prosport Performance Coolant Temp Gauge (Evo Series)
-Prosport Performance Fuel Press Gauge (Evo Series)
-Greddy Full Auto Black Turbo Timer
-Greddy Profec B Spec-2 Electronic Boost Controller

Future Mods :
-Custom Sheet metal Intake manifold
-Cryo Treated Transmission
-Custom Driveaxles
-Custom Traction Bars

PHOTOS:


Punisher Rig Front TVP4.9.2013 by Twisted Visionz Photography, on Flickr


Punisher 6 (1 of 1)6.20.2013 by Twisted Visionz Photography, on Flickr


tunnel shoot (2 of 2)6.26.2013 by Twisted Visionz Photography, on Flickr


punisher 6 midhudson bridge (1 of 1)7.31.2013 by Twisted Visionz Photography, on Flickr


untouchables 2012 (47 of 49)8.26.2012 by Twisted Visionz Photography, on Flickr


punisher 6..... Damn, damn, damn! by Twisted Visionz Photography, on Flickr


punisher 6 rolling interior (1 of 2)8.4.2013 by Twisted Visionz Photography, on Flickr


punisher 6 rolling interior edit (2 of 2)8.4.2013 by Twisted Visionz Photography, on Flickr


punisher6 graffiti (1 of 1)8.22.2013 by Twisted Visionz Photography, on Flickr


punisher 6 by Twisted Visionz Photography, on Flickr


That Sky tho.... by Twisted Visionz Photography, on Flickr


punisher 6 by Twisted Visionz Photography, on Flickr


Punisher 6 Light Test 2013 (1 of 1) by Twisted Visionz Photography, on Flickr

A Couple From My trip Down to Florida at the End of October:


episodeM coverage 2013 (25 of 69)10.23.2013 by Twisted Visionz Photography, on Flickr


Punisher 6 at Episode M by Twisted Visionz Photography, on Flickr

[hybrid90accord]

is the dash spray painted????

[AnthonyF]

eh...Creative with the twin turbo kit, but everything else is "too much" for me. More pics of the actual build would be nicer.

personally, I feel you WASTED a lot of money on that car.

Also, why do you have black eye lids on a black head lamp? Why not paint them white to match the car?

-Ant.

[nsany(atl)]

Why the Corvette race team skulls?

[hybrid90accord]

Why the Corvette race team skulls?

vs

[The Great NY]

is the dash spray painted????

no, no rattle cans bro

eh...Creative with the twin turbo kit, but everything else is "too much" for me. More pics of the actual build would be nicer.

personally, I feel you WASTED a lot of money on that car.

Also, why do you have black eye lids on a black head lamp? Why not paint them white to match the car?

-Ant.

why do you feel i wasted money on this car? im curious to see the response for this.

as for the black headlamps and black eyelids, i like subtle accenting. and it looks better black than white. because you can see it, but you cant see it.

Why the Corvette race team skulls?

corvette race team? last i checked those skulls are the Punisher Skulls from the comic book hero/villian depending on perspective of "the Punisher"

[The Great NY]

vs

haha, the corvette racing team looks totally like a star wars helmet, just my opinion tho, thanks for the pics bro/sis, cant tell by the SN ur gender

[quickdodge®]

Car looks ok. Looks overdone to me. Later, QD.

[Boosted FC]

:couch:

[The Great NY]

Car looks ok. Looks overdone to me. Later, QD.

thanks man.

overdone for a typical daily driver/street vehicle? possibly

overdone for a show car/street vehicle/daily driver? not at all by far

[Nemesis]

Total props on the TT , I love Mazda 6's but its a little too Nopi Nationals up in that interior lol

[The Great NY]

Total props on the TT , I love Mazda 6's but its a little too Nopi Nationals up in that interior lol

thanks bro.

you know whats funny, as long as i have been doing cars and stuff, i have never gone to nopi nationals. i dont know why, i just always wind up doing other stuff, o i have no idea what the scene is like at one of their events, lol

[AnthonyF]

no, no rattle cans bro

Looks like a roller.

why do you feel i wasted money on this car? im curious to see the response for this.

It's a Mazda with many ford parts. It's not even 100% genuine Mazda. Will you get any of your money back from this "build?" No. You prob could have bought a Supra. Yes, lots of people have them but they don't depreciate like this car will.

Any ground breaking times or numbers? Did you build the transmission, axles, hubs/spindles? Or are you hoping they hold up b/c you have tripled the power from the engine?

as for the black headlamps and black eyelids, i like subtle accenting. and it looks better black than white. because you can see it, but you cant see it.

They are pointless then.

-Ant.

[Nemesis]

thanks bro.

you know whats funny, as long as i have been doing cars and stuff, i have never gone to nopi nationals. i dont know why, i just always wind up doing other stuff, o i have no idea what the scene is like at one of their events, lol

Nopi started turning into crap back in 03/04 , but thats just my opinion. I really think you should get some decent photos of your car outside of the "show". I dont think it would look bad, but your display and your setup takes away from the car.

[KDM>JDM]

the outside isnt bad, not feeling the interior though..

[unCIVILized6]

I'll have to agree with you Nemesis, his car is very clean, and looks amazing in person. I went for a ride in it before the TT went it, and its was quicker then speed6's. Now I can only imagine.

[The Great NY]

Looks like a roller.

It's a Mazda with many ford parts. It's not even 100% genuine Mazda. Will you get any of your money back from this "build?" No. You prob could have bought a Supra. Yes, lots of people have them but they don't depreciate like this car will.

Any ground breaking times or numbers? Did you build the transmission, axles, hubs/spindles? Or are you hoping they hold up b/c you have tripled the power from the engine?

They are pointless then.

-Ant.

roller? lol professional auto body spray gun.

the paint is automotive color and clear. with primer and etc. under just as a vehicle exterior would be done. i chose to keep texture to keep the feel of it when you touch it.

hmm, ford block, mazda heads, motor designed by Cosworth and Porsche. the stock bottom end has Aston martin rods, a crank that handle over 800hp stock, part ford yes, and?

tranny thus far all i have done is a forged helical LSD with ARP fasteners. will be cryo treating a spare this winter, motors bottom end is stock right now, will be built in 2010

and who cares about getting my money back. if i was concerned about money i wouldnt build cars. i have no plan on selling the car. i build car for the love, not to worry about money coming back in return. if thats what you are concerned about, then cool.

as for the supra, dont want one honestly. im a different kinda motorhead, i purposely choose cars to build that no one has done yet. i like being different and having something unique. and dont care how much it costs me to be different.

could buy two mustangs and two xrunners, but everyone has em so i dont want it. thats just me. forgive me for not conforming to the norm and trying something different bro.

do i love the supra, mustang, evo, and etc? hell yea, the cars are awsome, but they are not for me. u know?

as far as other parts you mentioned asking if they were built.......they will be.......but doing something that hasnt been done before, you run itno issues with having to get things custom made, and takes a lil longer than just buying off the shelf.

[Boosted FC]

Before this thread goes downhill, let me shed a little light. Anthony, I agree that there are a lot of Ford parts on the 6 (I have one...lol). What Justin did, has never been done in the 6 Community. No one has built a fully functional "tunable" TT Mazda6. Yes, someone tried before, but that was a failure. They could not tune that car. Justin has had quite a few parts made by suppliers for these cars. What he does is try to get the 6 out there. He looks out for fellow 6 owners & helps them in anyway he can. His car has also been the test bench for a lot of these parts before they were even marketed.

[DB4LYFE ™]

over done! interior is stuck back in 2000...

~DB4LYFE

[The Great NY]

Nopi started turning into crap back in 03/04 , but thats just my opinion. I really think you should get some decent photos of your car outside of the "show". I dont think it would look bad, but your display and your setup takes away from the car.

yea IIRC didnt they almost cancel a few of the nopi events this year or last year? i heard something about a couple of them werent happening but wound up still going down. HIN is the same. i feel for HIN like you feel for Nopi.

i have some pics before it was boosted. and a few after thats not in the show scene, i will be taking some more this weekend if its nice. i will be finishing up a couple things on it today. its been off the road for 3 days, fixing an oil leak.

the outside isnt bad, not feeling the interior though..

thanks

I'll have to agree with you Nemesis, his car is very clean, and looks amazing in person. I went for a ride in it before the TT went it, and its was quicker then speed6's. Now I can only imagine.

dude, i swear the car caught me off guard one day....it hit boost and i didnt expect it to kick like it did, and popped it out of gear cause it flung me back, lol

these nittos hold traction very well.

[unCIVILized6]

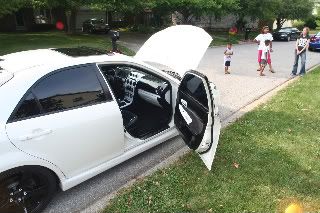

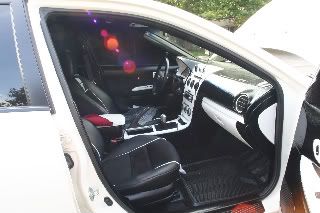

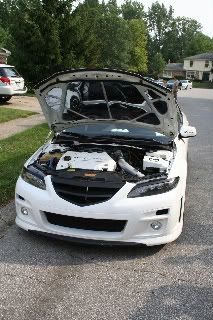

some better pictures for you guys, since Justin lost his good camera:

[The Great NY]

over done! interior is stuck back in 2000...

~DB4LYFE

thanks

[Repiks]

For a show car, I'd say the interior is on par with others.

It's a car full of innovation. Don't hate on it because it's not jdm tight and stock looking.

[The Great NY]

For a show car, I'd say the interior is on par with others.

It's a car full of innovation. Don't hate on it because it's not jdm tight and stock looking.

thanks man.


question what year is your Lightning? i always loved those things. ford shouldve never stopped making them

[Kamikaze]

Not my style, but props on the TT.

[The Great NY]

Not my style, but props on the TT.

thanks man

[quickdodge®]

thanks man.

overdone for a typical daily driver/street vehicle? possibly

overdone for a show car/street vehicle/daily driver? not at all by far

The outside looks nice. Nothing to get whiplash over. Just plain and clean. That's cool. The inside looks like a typical year 2000 car you'd see anywhere back then. It's not really that good of a look now.

But don't sweat the opinions of me and others. It's all about you when it's your car. Later, QD.

[amandDA]

not my style but well done! h8ters will h8....

[The Great NY]

The outside looks nice. Nothing to get whiplash over. Just plain and clean. That's cool. The inside looks like a typical year 2000 car you'd see anywhere back then. It's not really that good of a look now.

But don't sweat the opinions of me and others. It's all about you when it's your car. Later, QD.

no doubt, im definatly not sweating it. i love to get peoples opinions whether neg. or pos. no matter wat u know.

not my style but well done! h8ters will h8....

thanks

[HachiDori]

I think if the interior did has so much contrast it would look 1000x better. The exterior of the car is not bad, the kit is to aggressive for me though.

Get some Black suede and everwhere you painted white, wrap it with it!

Honestly, it is very hard to pull of a painted interior, or color matched interior. Even on a porsche, I still cringe when I see it.

uhhh...btw you didn't spin at all. you need to run more boost or something. My sisters VW bug pulls harder than this:

http://www.youtube.com/watch?v=gPWOF...eature=channel

[TSiFTW]

Dude I love your car. Props for doing your thing. Screw what anyone elsr thinks and do what you love. It is nice to see a modified car.

[Brian*]

Yo man, I think the car is beautiful! The fact that it is twin turbo is insane... You did damn good on this car, keep up the good work* REP4YOU!

[Njobe]

thanks man.


question what year is your Lightning? i always loved those things. ford shouldve never stopped making them

pretty sure it says it his sig

[Turbodude06]

Kool!!! I love the interior.....













Not JDM= Not kool on IA

[The Great NY]

I think if the interior did has so much contrast it would look 1000x better. The exterior of the car is not bad, the kit is to aggressive for me though.

Get some Black suede and everwhere you painted white, wrap it with it!

Honestly, it is very hard to pull of a painted interior, or color matched interior. Even on a porsche, I still cringe when I see it.

uhhh...btw you didn't spin at all. you need to run more boost or something. My sisters VW bug pulls harder than this:

http://www.youtube.com/watch?v=gPWOF...eature=channel

lol, lets see, where should i start on that video?

1. this video was taken the first time i actually drove the car on the road and hit max boost

2. i was at 5psi

3. i was rich as hell

4. i had 15 degrees of timing retarded during that run

5. the car was basically no where near having a round about tune

6. i had spark blow out between 5400-6000rpms in both gears

7. spun briefly


no comment on the Bug, because u may be right, at least at the time of that video, lol

thanks for your post tho.

Dude I love your car. Props for doing your thing. Screw what anyone elsr thinks and do what you love. It is nice to see a modified car.

thanks a bunch

[The Great NY]

Yo man, I think the car is beautiful! The fact that it is twin turbo is insane... You did damn good on this car, keep up the good work* REP4YOU!

thank you man

pretty sure it says it his sig

wow, im an idoit, lol i totally overlooked that. just saw the pic and asked, thanks bro

Kool!!! I love the interior.....


Not JDM= Not kool on IA

lol, thanks. that red smiley is hilarious

[roche]

I can dig it. The interior isn't the way I would've done it, but it isn't my car. Looks like a lot of hard work went into it and the TT is sick. Nice car man.

[quickdodge®]

not my style but well done! h8ters will h8....

This is where the term "haters" is way overused. No one is "hating" in here. Thankfully, this thread hasn't turned out like most threads where not everyone likes a car. It seems everyone is actually being tasteful in their comments of displeasure. Just because someone doesn't like something, doesn't make them a "hater." Later, QD.

[Turbodude06]

This is where the term "haters" is way overused. No one is "hating" in here. Thankfully, this thread hasn't turned out like most threads where not everyone likes a car. It seems everyone is actually being tasteful in their comments of displeasure. Just because someone doesn't like something, doesn't make them a "hater." Later, QD.

Probably cause there no more bashing lol

[quickdodge®]

Probably cause there no more bashing lol

We try to keep a lid on the bashing, but it still gets rough, but this thread has been a good example of how these thread should be. Later, QD.
