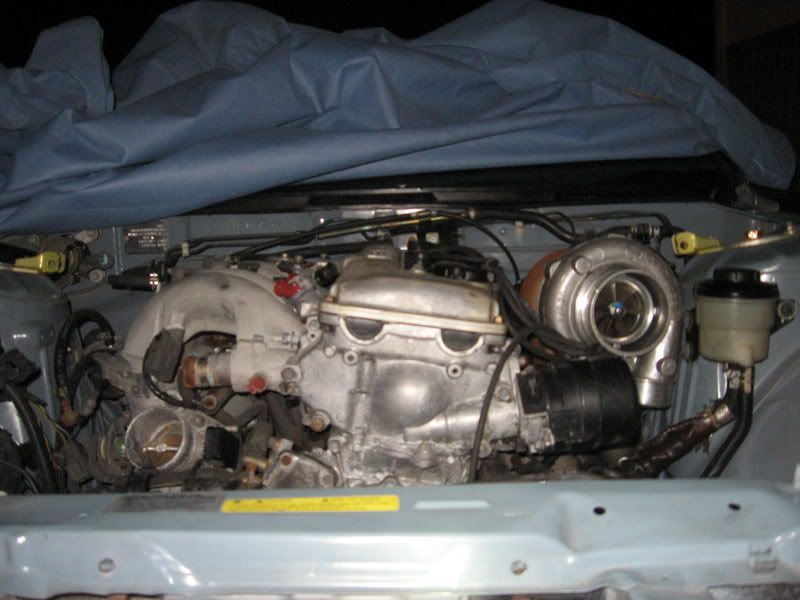

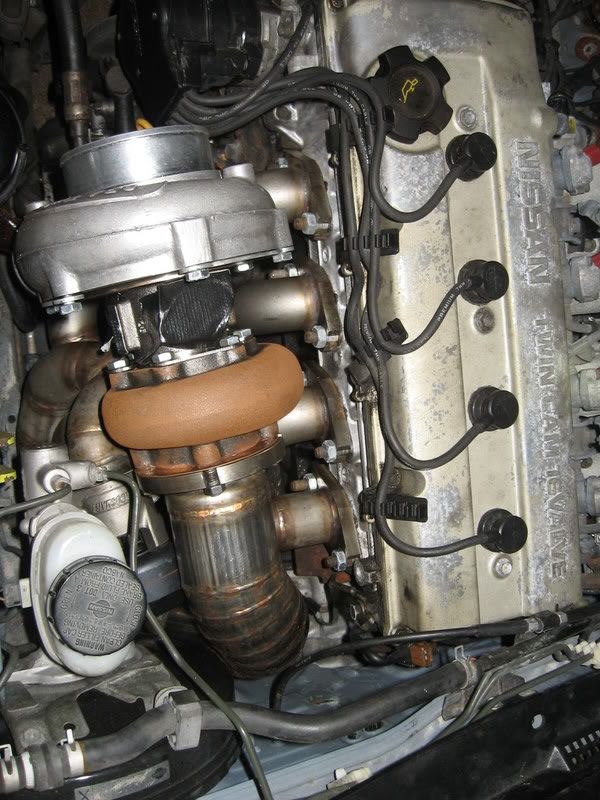

What you get:

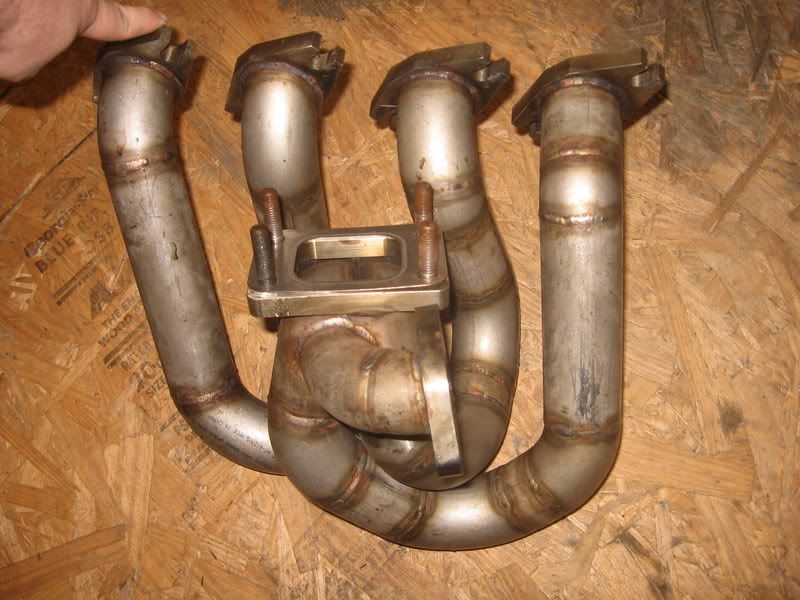

stainless steel tubular manifold
3in stainless steel downpipe
SPA 70-63m turbocharger
TurboSmart 38mm wastegate
EVERYTHING IS FULLY TIG WELDED!!! The wastegate is re-routed back into the downpipe for a quiet car. everything is brand new just bolted up for fabrication!! this kit is very high quality
Here are the turbos specs.
Specifications:
Compressor: 76 trim 0.70 A/R
Compressor inducer: 63.9 mm
Compressor exducer: 73.5 mm
Compressor Inlet: 4” hose connection
Compressor Outlet: 2.5” hose connection
Turbine: 46 trim 0.63 A/R
Turbine inducer: 96.3 mm
Turbine exducer: 65.0 mm
Turbine Inlet: Standard T3 4 bolt flange
Turbine Outlet: 3" 4 bolt round flange
Center Housing: Oil cooled
Bearing System: Journal bearing
Wastegate: External
![]()
